| Hard metric connectors in 2.0mm pitch har-bus® HM |

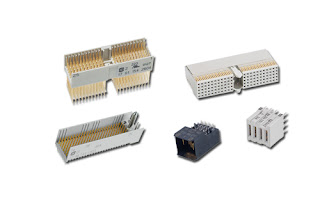

HARTING offers 5 row and 8 row 2.0mm hard metric connectors har-bus® HM according to IEC 61076-4-101.
The product family includes all standard types such as all variants for CompactPCI, Hot Swap and CTI (Computer Telephony Integration). The modules are defined as the 5+2 row types A, B, AB and C and the 8+2 row types D, E and DE.
Additionally, a special Monoblock version for CompactPCI applications is available that combines an A type and a B type module in one moulding.
The high current har-bus® HM Power connector also complies with the OBSAI specifications. This very compact connector can be loaded with up to four contacts, each contact carrying up to 23A at 70°C. The straight contacts for female connectors are offered in four lengths to allow hot swapping. The right-angled male connectors are available for press-in and for pin in hole intrusive reflow soldering.
Accessories and press-in tooling are available for all connectors.
